To locate additional symbols in SmartDraw's vast library of icons, simply type a keyword into the Search for symbols field in the Symbols area of the SmartPanel to the left of your workspace. To start the search click the magnifying glass icon.
Symbols matching the query will be grouped by the libraries they appear in.
Hover over any symbol to see its name.
You can drag and drop symbols you find directly from the search results.
Pinning Results

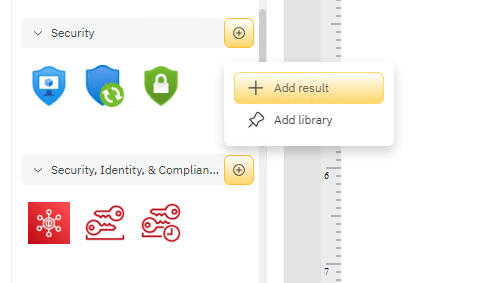

You can save the results for later use. To pin just the symbols that matched your search from a particular library, click on the plus icon next to the library's name and select Add result.
You can also pin the entire library by clicking Add library.
Pin All Results
To pin all the symbols matching your query, click the star icon next to the search field.
This will group all the symbols found into a single library that will be docked with all the other libraries for your template.
Remove Search Results
You can remove the results of your search by clicking the X next to the search field. This will remove all search results except ones you specifically chose to add.

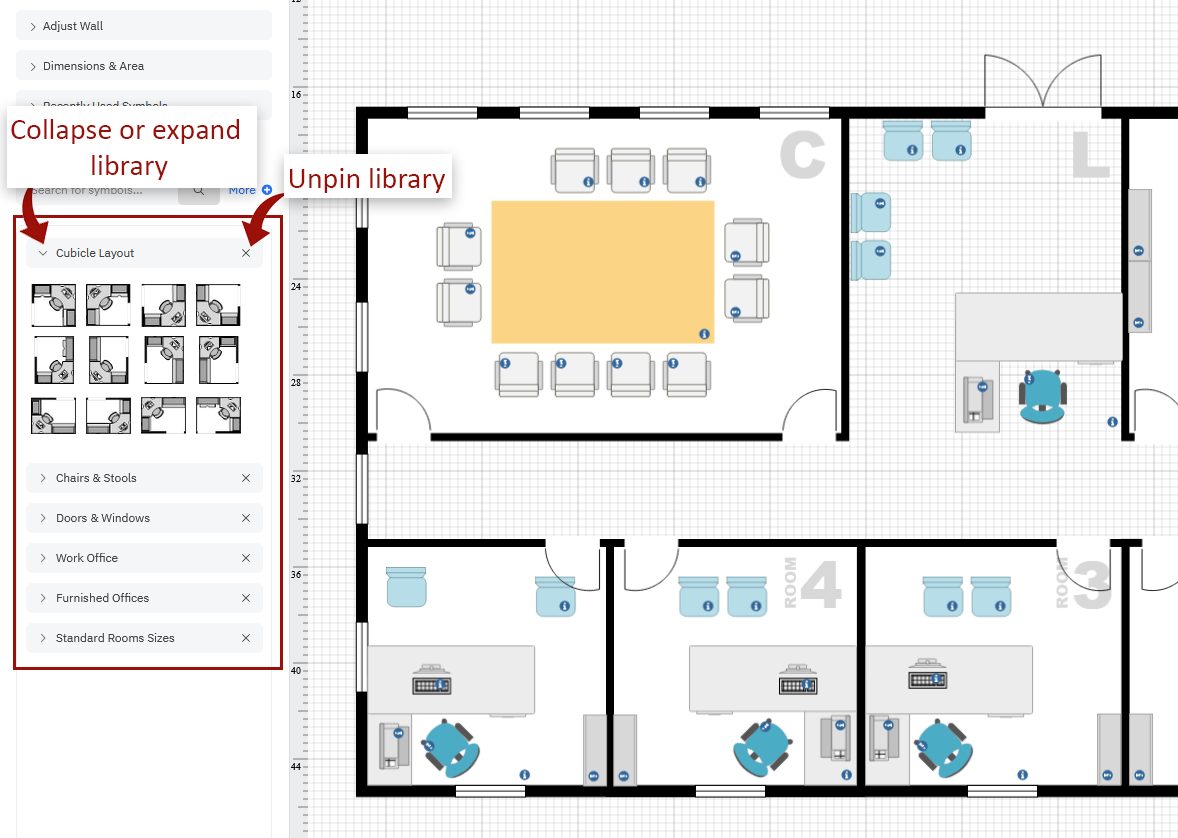

Browse Pinned Libraries
You can browse the pinned libraries and search results in the SmartPanel.
Scroll to see all the libraries docked or use the carats (small black arrows to the right of the name) to expand and collapse any library.
Click the X to unpin the library from the SmartPanel.
You can drag libraries up and down the stack to reorder them.
